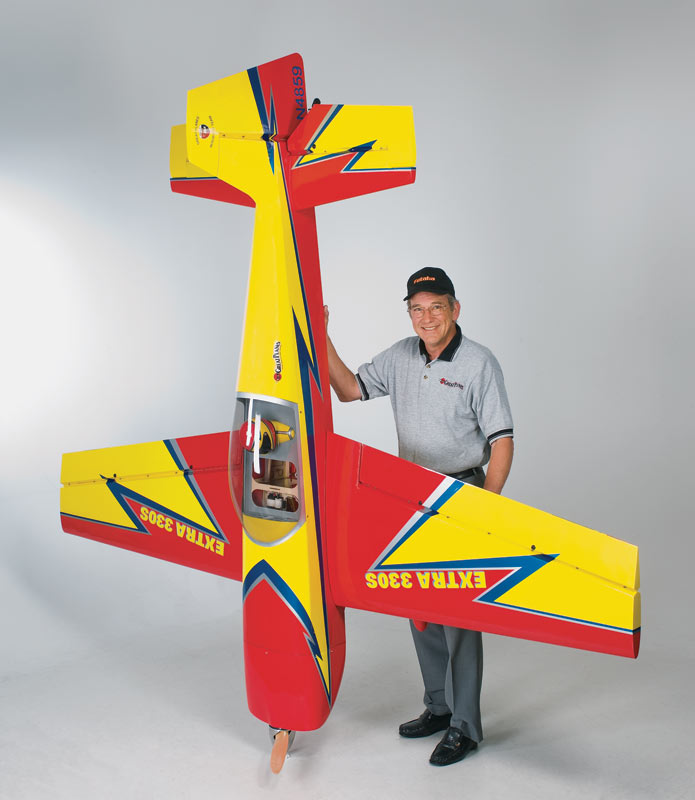

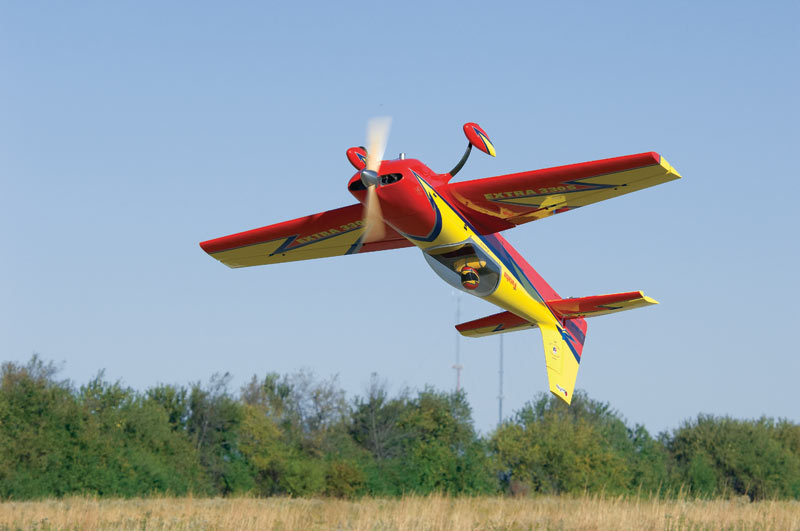

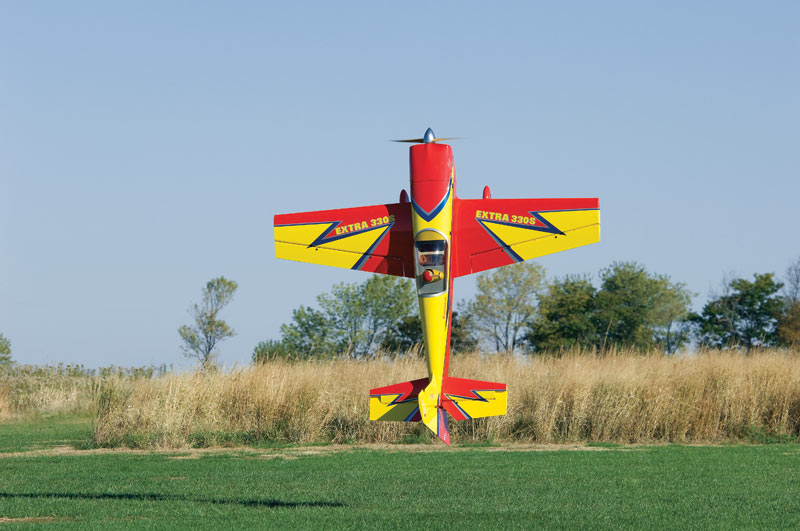

     This is the radio controlled, gasoline powered, Almost Ready to Fly,
                Great Planes 38% Extra 330S Giant Scale Aerobat.
                    IMAA Legal and Fully 3D and IMAC Capable
                          For Advanced Modeler/Fliers.

FEATURES: Construction: Built-up balsa and ply airframe, sheeted foam turtle
            deck with balsa sheeting, full deflection throws and double
            beveled control surfaces
          Wings: Two-piece wing panels with aluminum joiner tube
          Horizontal Stabilizer: Two-piece with carbon fiber joiner tube
          Radio Compartment: Located under canopy, plywood reinforced
          Covering: Top Flite MonoKote
          Cowl: Carbon-fiber/fiberglass, painted to match covering
          Cockpit Detail: Instrument panel and painted pilot head
          Canopy: Clear, integrated with hatch, removal allows access to
            electronics and battery packs
          Landing Gear: Carbon-fiber
          Main Wheels: 5" (217mm) Du-Bro, constructed of rubber
          Tailwheel: Adjustable aluminum
          Landing Gear Fairings: Painted fiberglass
          Aileron Control: Four servo, prehinged with giant scale hinge point
            hinges
          Pilot Figure: Lightweight painted fiberglass
          Fuel Tank: 49oz (1450cc)
          Spinner: Polished aluminum 4" (102mm) diameter
          Stabilizer: Bolt-on halves with prebuilt servo pockets, carbon fiber
            tubes
          Rudder: Pull-pull design with three servo set-up, dual ball bearing
            supported tiller arm and aluminum servo tray
          Hardware: Complete giant scale set with all-aluminum servo arms
            (normally an extra-cost add-on)
          Building Time: Ready to fly in 6-8 hours
          Warranty: Great Planes Model Manufacturing Company guarantees this
            kit free from defects in both materials and workmanship at
            the date of purchase.

INCLUDES: Pre-built and covered wing and fuselage sections, aluminum spinner,
            instrument panel, wheel pants, wheels, all hardware including
            aluminum servo arms and servo tray, pilot head, and manual

REQUIRES: Engine: (120 -150 cc) gasoline, Desert Aircraft 150cc recommended
          Propeller: 30x12 (not carried)
          Radio: 5-6 channel with mixing capabilities
          Servos: 4-Aileron servos with at least 190 oz-in torque (FUTM0215)
                  3-Rudder servos with at least 120 oz-in torque (FUTM0235)
                  2-Elevator servos with at least 300 oz-in (FUTM0216)
                  1-Thottle servo medium torque (FUTM0075)
          Servo Synchronizer: FUTM4155, for the three rudder servos
          Two 6" (150mm) Heavy Duty Dual Servo Extension: (FUTM4135) from
            receiver for ailerons
          Two 6" (150mm) Heavy Duty Servo Extensions: (HCAM2701) for throttle
            servo and rudder synchronizer
          Two 12" (305mm) Heavy Duty Servo Extensions: (HCAM2711) for inboard
            aileron servos
          Two 36" (915mm) Heavy Duty Servo Extensions (HCAM2726) for outboard
            aileron servos

          If connecting elevator servos to separate channels in receiver
            and using mixing in transmitter the following extensions will also
            be required:
          Two 6" (150mm) Heavy Duty Servo Extensions: (HCAM2701)
          Two 12" (305mm) Heavy Duty Servo Extensions: (HCAM2711)
          Two 36" (915mm) Heavy Duty Servo Extensions (HCAM2726)

          If connecting elevator servos to the same channels in receiver the
            following will be required:
          Two 36" (915mm) Heavy Duty Servo Extensions (HCAM2726)
          Servo Reverser: FUTM4150

          Receiver Battery: At least 3000mAh capacity (HCAM6355)
          Two Heavy Duty On/Off Switches: Ignition battery and radio system
            (HCAM2761)
          Misc. Items: CA and epoxy glue, gasoline fueler valve, 1/2" foam
            rubber padding, 3' medium gasoline tubing, fuel filter, propeller,
            decals, building and field equipment.

SPECS:    Wingspan: 110.5" (2805mm)
          Wing Area: 2279 sq in (147 sq dm)
          Weight: 36 - 38lb (16.3 - 17.2kg)
          Wing Loading: 36 - 38 oz/sq ft (111 - 117g/sq dm)
          Length: 103" (2616mm)
          Airfoil: Fully symmetrical
          Center of Gravity: 5-3/4" (146mm) Back from the wing's leading edge
            measured at the wing tips
          Control Throws-        Low Rate       High Rate        3D
            Ailerons: Up & Down  1-3/8" (35mm) 2"     (50mm)   3-1/2" (90mm)
            Elevator: Up & Down  1"     (25mm) 1-3/4" (45mm)   4-3/4" (120mm)
            Rudder: Right & Left 5"    (130mm) 7"     (180mm)  8"     (200mm)

COMMENTS: Following are the Top Flite MonoKote colors used on this model and
            order numbers for 6ft rolls;
            Yellow,       TOPQ0203         Metallic Blue, TOPQ0402
            Missile Red,  TOPQ0201         Aluminum,      TOPQ0205

                                                                    jxs 1/24/08
